MISCELLANEOUS

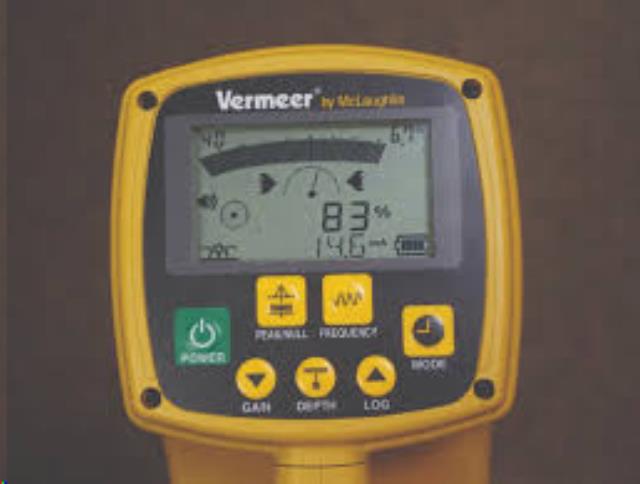

UTILITY/PIPE LOCATOR W/ TRANSMITTER


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $85.00

Daily: $85.00

Weekly: $255.00

Monthly: $765.00

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

Additional Information

ACTIVE FREQUENCIES 38 KHZ : 38 KHZ 2%
9.5 KHZ : 9.5 KHZ 2%
80 KHZ : 80 KHZ 2%
850 HZ : 850 HZ 2%
512 HZ : 512 HZ 2%
PASSIVE RADIO 9 k to 33 kHz (80 bands)
PASSIVE POWER POW : 9 k to 33 kHz (80 bands) 120 Hz : 95~125 Hz
BATTERY TYPE Six Alkaline LR6 AA
BATTERY LIFE 18 hours (20 C / 68 F)
BATTERY STATUS Continuous indication
POWER SAVE FUNCTION Automatic power off after 5min of inactivity
VISUAL INDICATION LCD: bar graph, digital number & character
DEPTH DISPLAY High precision depth measurement
RANGE Line: 0 to 5 m /16 ft. ( 0-5 m / 0-16 ft. mode)
0 to 10 m /30 ft. (0-10 m / 0-30 ft. mode)
Probe: 0 to 10 m /30 ft.
Real time depth measurement 0 to 9.9 m / 33ft
DEPTH READOUT UNIT Meter / Feet & Inch
DEPTH ACCURACY* 2.0m / 6.5ft. : 2.5%
3.0m / 10ft. : 5%
5.0m / 16.5ft. : 10%
CURRENT VALUE Current value flowing on the conductor is displayed for line identity in milliamps.
AUDIO OUTPUT Internal Speaker with sound volume adjusting function, Earphone (optional)
DATA LOGGING Memorized 400 points of the depth/ the current measurement/ the date and time data.
INTERFACE 6-pin output connector
OPERATING TEMPERATURE -20 C to 50 C / -4 F to 122 F
DIMENSIONS 660 x 130 x 270 mm (26.0 x 5.1 x 10.6 )
WEIGHT 2.1 kg/ 4.7 lbs. approx. including six batteries

* Please call us with any questions about our utility/pipe locator w/ transmitter rentals in St. Peters MO, serving O'Fallon, St. Charles, Wentzville, and areas west of St. Louis in Missouri
