SKID LOADERS

SKID LOADER, TRACKS, 4000LB WITH CAB

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view

Daily: $440.00

Weekly: $1,700.00

Monthly: $4,200.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

TL-12 HAS A CAB WITH HEAT AND AC
Operating Weight - Cab 13,190 lbs (5,985 kg)
Tipping Load 11,737 lbs (5,324 kg)
Rated Operating Capacity @ 35%* 4,107 lbs (1,863 kg)
Operating Capacity w/ Opt Counterweight 4,815 lb (2,184 kg)
Operating Load @ 50% of Tip Load 5,868 lbs (2,662 kg)
Bucket Breakout Force 7,874 lbs (3,571 kg)
Lift Arm Breakout Force 7,109 lbs (3,225 kg)
Traction Force 14,006 lbs (6,353 kg)
Ground Pressure 4.8 psi (33.0 kPa)
Travel Speed - Low 5.0 mph (8.1 km / hr)
Travel Speed - High 7.3 mph (11.6 km / hr)
Auxiliary Flow - Primary Circuit 23.2 gpm (88.0 Lpm)
Auxiliary Flow - High Flow (optional) 40.4 gpm (153.0 Lpm)
Auxiliary Flow - 2nd Circuit (optional) 23.2 gpm (88.0 Lpm)
Hydraulic System Pressure 3,481 psi (24.0 MPa)
Engine Lubrication 13.9 qt (13.2 L)
Cooling System 19.0 qt (18.0 L)
Fuel Tank Capacity 32.7 gal (123.9 L)
DEF Fluid Tank Capacity 4.8 gal (18.0 L)
Fuel Consumption (65% of Full Load) 3.8 gal / hr (14.4 L / hr)
Hydraulic Reservoir Capacity 13.2 gal (50.0 L)
Hydraulic System Capacity 20.6 gal (78.0 L)
Max. Lift Height to Bucket Pin 10 ft 10 in (3,299mm)
Dump Height Fully Raised 8 ft 1.0 in (2,459 mm)
Max. Mid-Height Reach 4 ft 8.0 in (1,416 mm)
Dump Reach Fully Raised 3 ft .4 in (924 mm)
Dump Angle 46.8
Rollback Angle 32
Track Ground Contact Length 5 ft 7.6 in (1,717 mm)
Machine Length 10 ft 6.0 in (3,203 mm)
Transport Length 13 ft 3.3 in (4,045 mm)
Transport Height 7 ft 9.7 in (2,381 mm)
Departure Angle 29
Clearance Circle with Bucket 8 ft 2.6 in (2,504 mm)
Clearance Circle without Bucket 5 ft 3.4 in (1,610 mm)
Clearance Circle Rear 6 ft 1.0 in (1,848 mm)
Track Width 17.7 in (450 mm)
Ground Clearance 12.2 in (310 mm)
Overall Width without Bucket 6 ft 5.2 in (1,960 mm)

Also check the following item(s) related to the above:

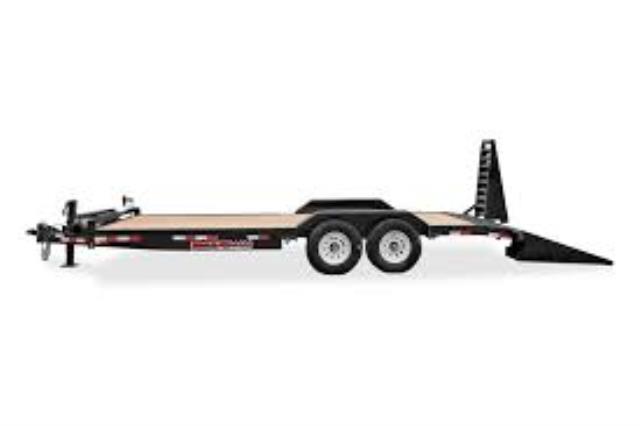

TRAILER 20' 16,000LB CAP

* Please call us with any questions about our skid loader tracks 4000lb with cab rentals in St. Peters MO, serving O'Fallon, St. Charles, Wentzville, and areas west of St. Louis in Missouri
